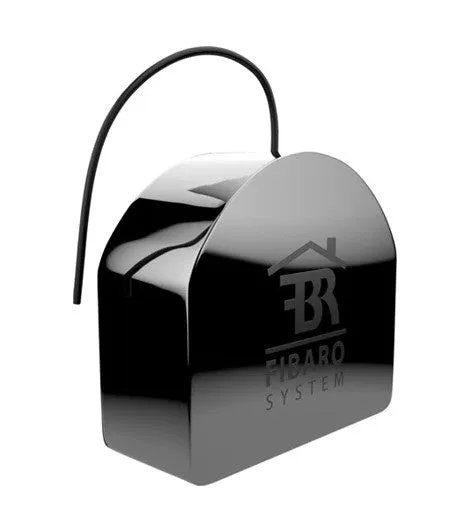

FIBARO Single Switch 2 (FGS-213) is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. FIBARO Single Switch 2 allows to control connected devices either via the Z-Wave network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality.

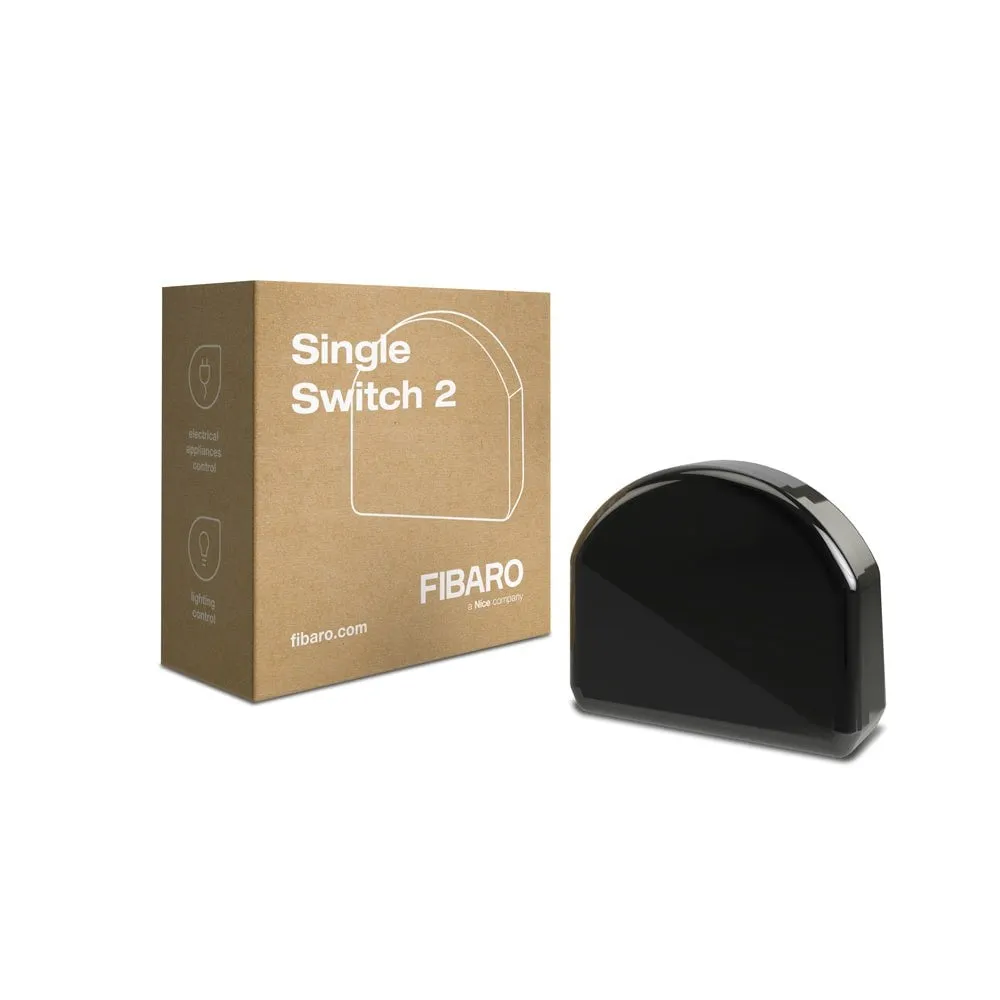

FIBARO Single Switch 2 (FGS-213)
Limited Stock
Features
- Compatible with any Z-Wave or Z-Wave Controller
- Supports protected mode (Z-Wave network security mode) with AES-128 encryption
- Advanced microprocessor control
- Active power and energy metering functionality
- Works with various types of switches – momentary, toggle
- three-way, etc
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- FIBARO Switch 2 is an extension unit
Technical data
| Power supply: | 100-240V~ 50/60 Hz |
| Rated load current: |
Single Switch 2 (FGS-213): IEC standards: 8A UL standards (resistive load): 6.5A UL standards (incandescent load): 5A Double Switch 2 (FGS-223): IEC standards: 6.5A per channel, 10A overall UL standards (resistive loads): 6A per channel, 9.5A overall UL standards (incandescent loads): 3A per channel |
| Operating temperature: | 0-35°C |
| For installation in boxes: | Ø ≥ 50mm, depth ≥ 60mm |
| Radio protocol: | Z-Wave (500 series chip) |
| Radio signal power: | up to 1mW |
| Radio frequency: | 868.4 or 869.8 MHz EU; 908.4, 908.42 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU; |
| Radio transmit power: | up to 6 dBm (EIRP) |
| Range: | up to 50m outdoors up to 40m indoors (depending on terrain and building structure) |
| Comply with EU directives: | RED 2014/53/EU RoHS 2011/65/EU |
| Dimensions (L x W x H): | 42.5 x 38.25 x 20.3 mm |
