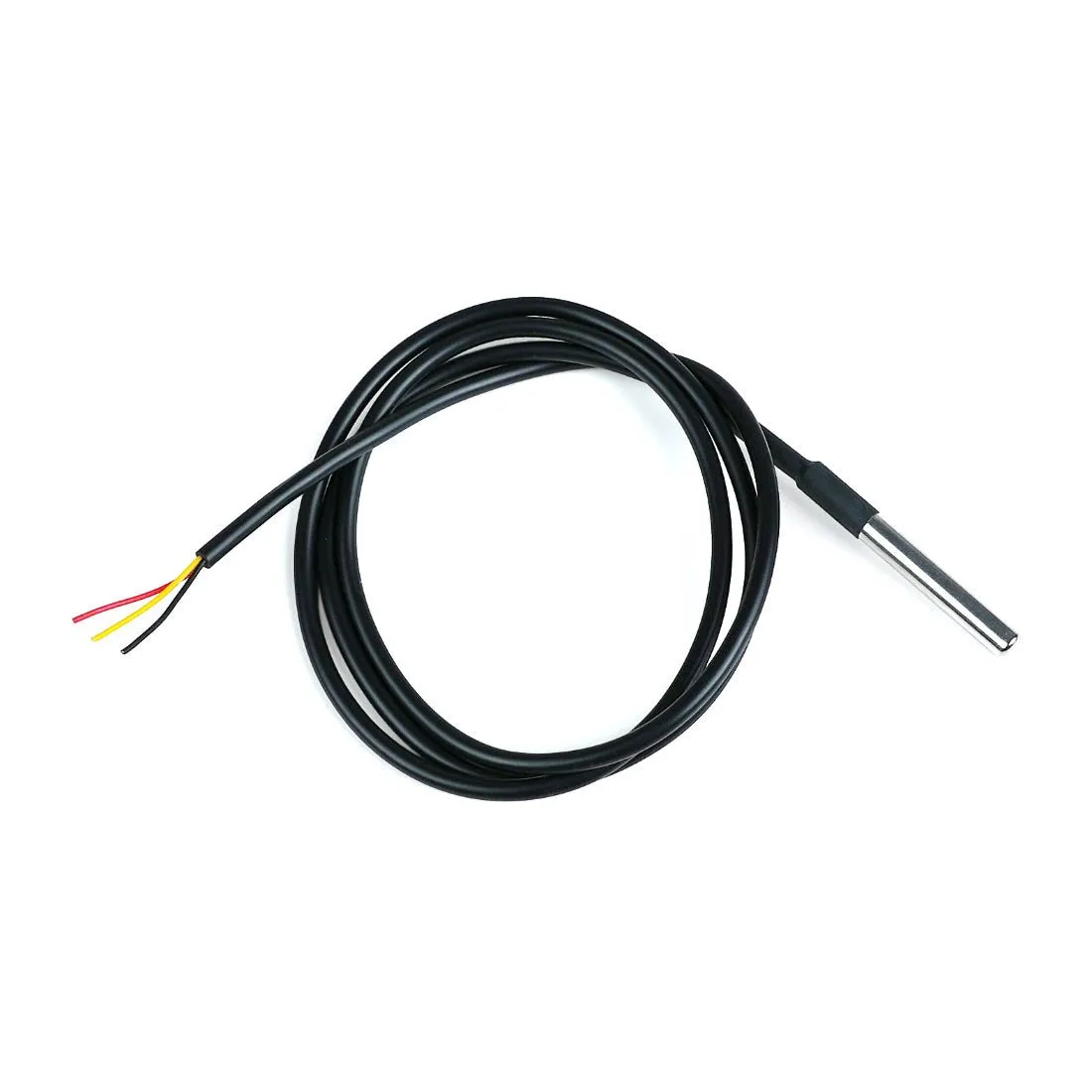

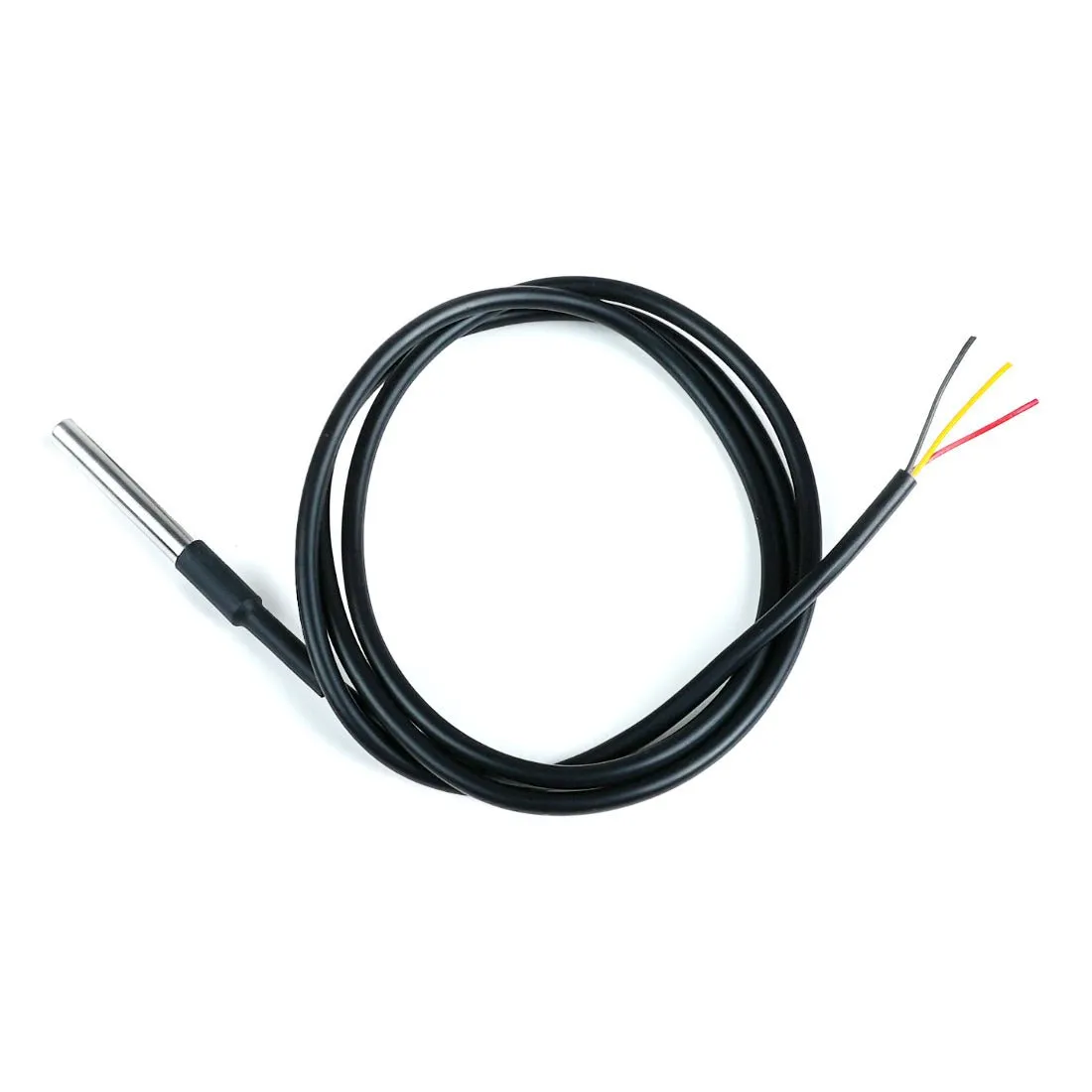

The EKM-DS18B20 is a 1-Wire Temperature Sensor. It is waterproof and the probe is stainless steel.

~section 2~

Description: 1-Wire temperature Sensor

Connections: Ground, Power, Signal

Support: EKM Push3, EKM Widget, api.ekmpush.com

Data: 1-Wire, Temperature in ºC

Model: EKM-1W-Temp-DS18B20

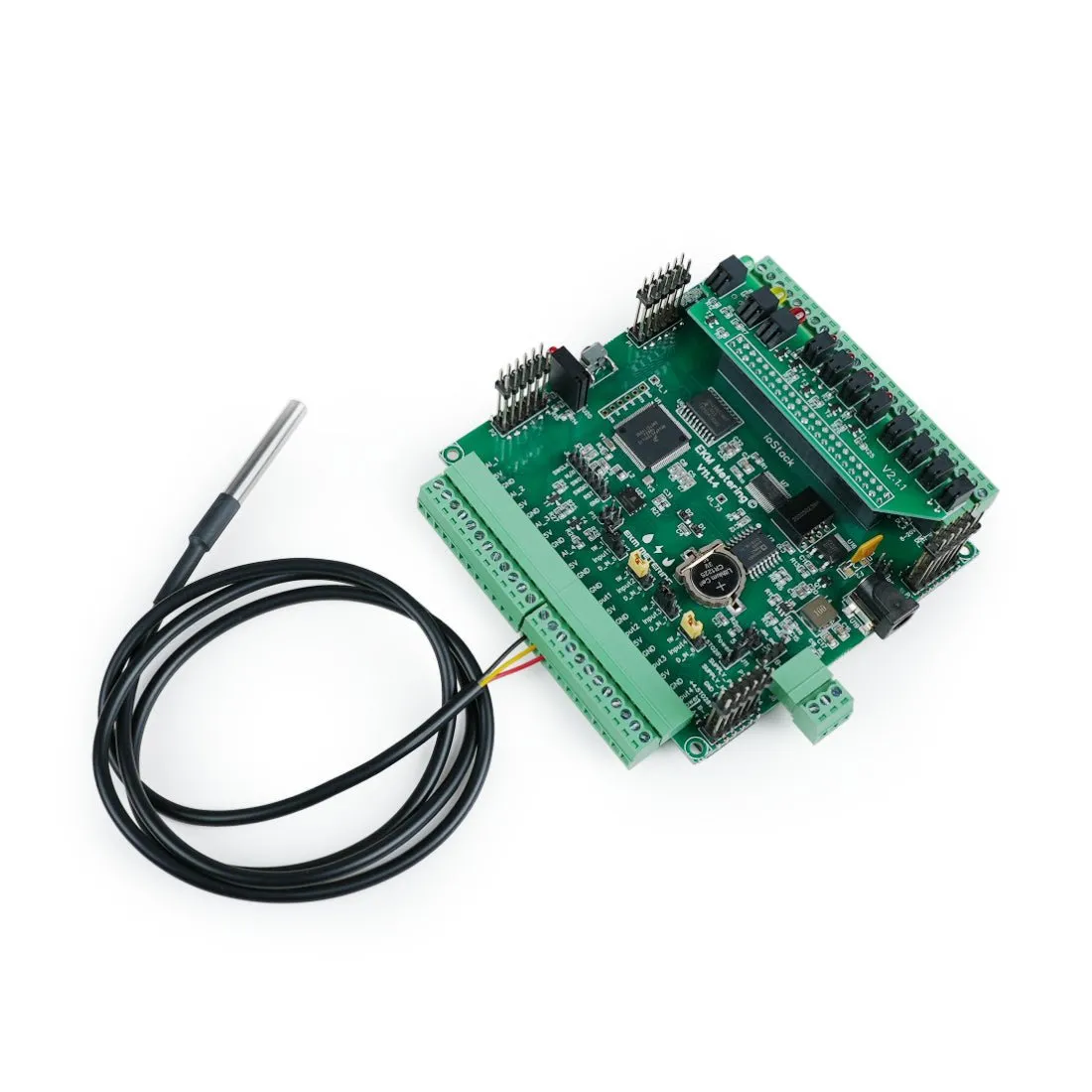

The EKM-1W-Temp-DS18B20 is a 1-Wire temperature probe that is intended to be paired with our , which has 4 separate 1-Wire buses that this temperature sensor can be connected to. The ioStack can then be read by our which will make the temperature sensor data available online. See the EKM Widget below displaying an example of this data.

SPECIFICATIONS

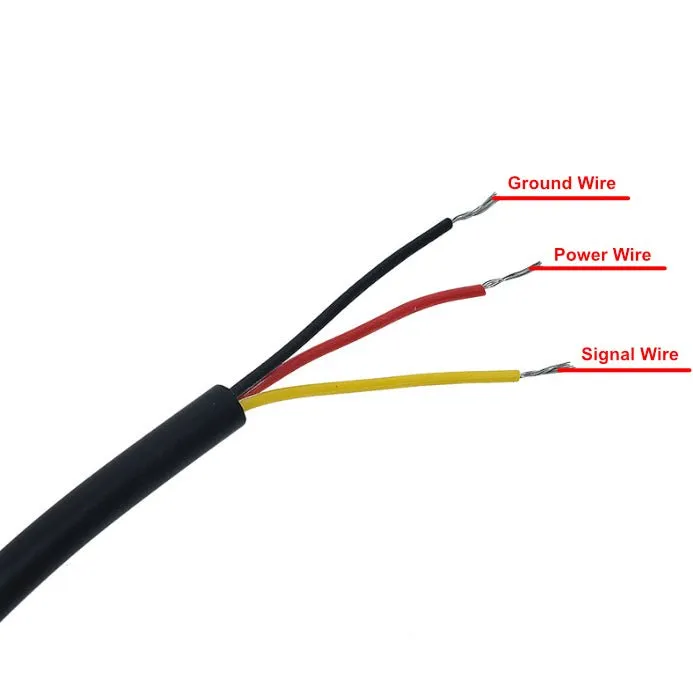

Output leads: Yellow (Signal), Red (PWR), Black (GND)
Length of Cable: 100CM/200CM
Size of Stainless steel sheath: 6x50mm
Power supply range: 3.0V to 5.5V
Operating temperature range: -55°C to 125°C (-67°F to 257°F)
Storage temperature range: -55°C to 125°C (-67°F to 257°F)
Accuracy: Over the range of -10°C to 85°C: ±0.5°C.
